CYL-1000/1200A

Description

CINA LASER’s CYL-1000/1200A Air Cooled 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.
CINA LASER, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.
CINA LASER’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ IIoT-Enabled Remote Monitoring

◉ Superior Beam Quality for Precision Processing

◉ Compact, Air-Cooled Design

◉ Versatile Material Compatibility

◉ Flexible Customization Options

Applications

◉ Laser Cutting.

◉ Laser Welding.

◉ Laser 3D Printing

◉ Laser Brazing.

Size

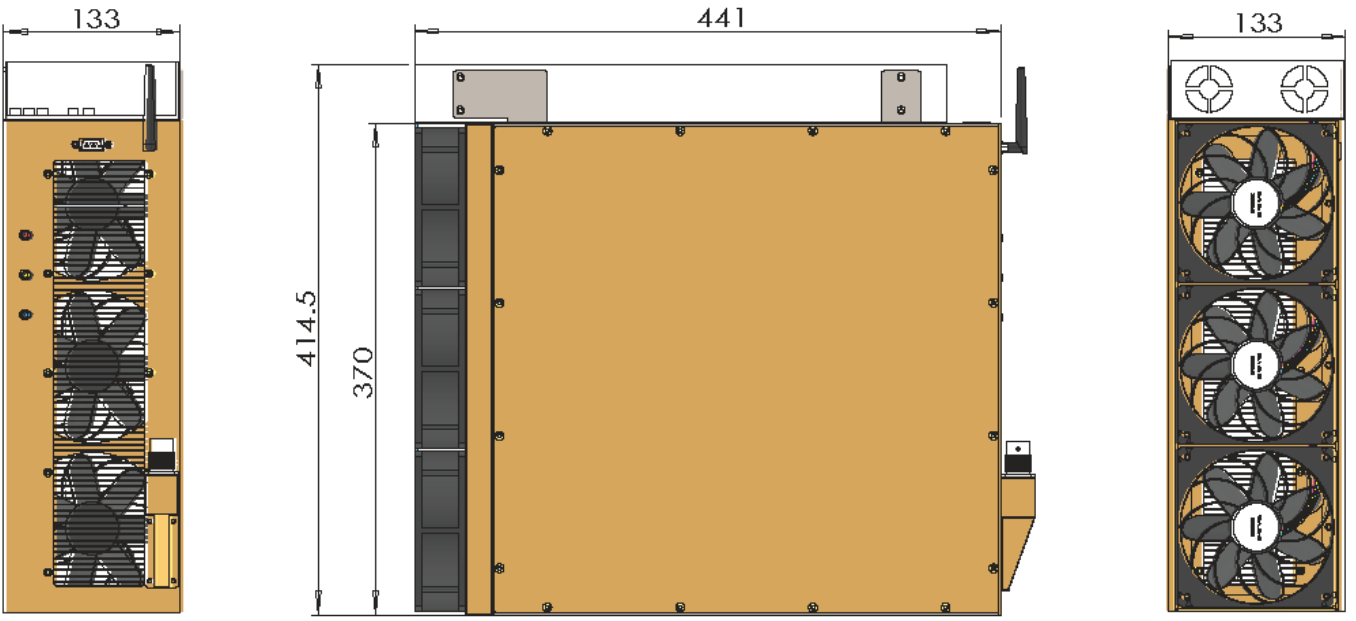

CYL-1000/A

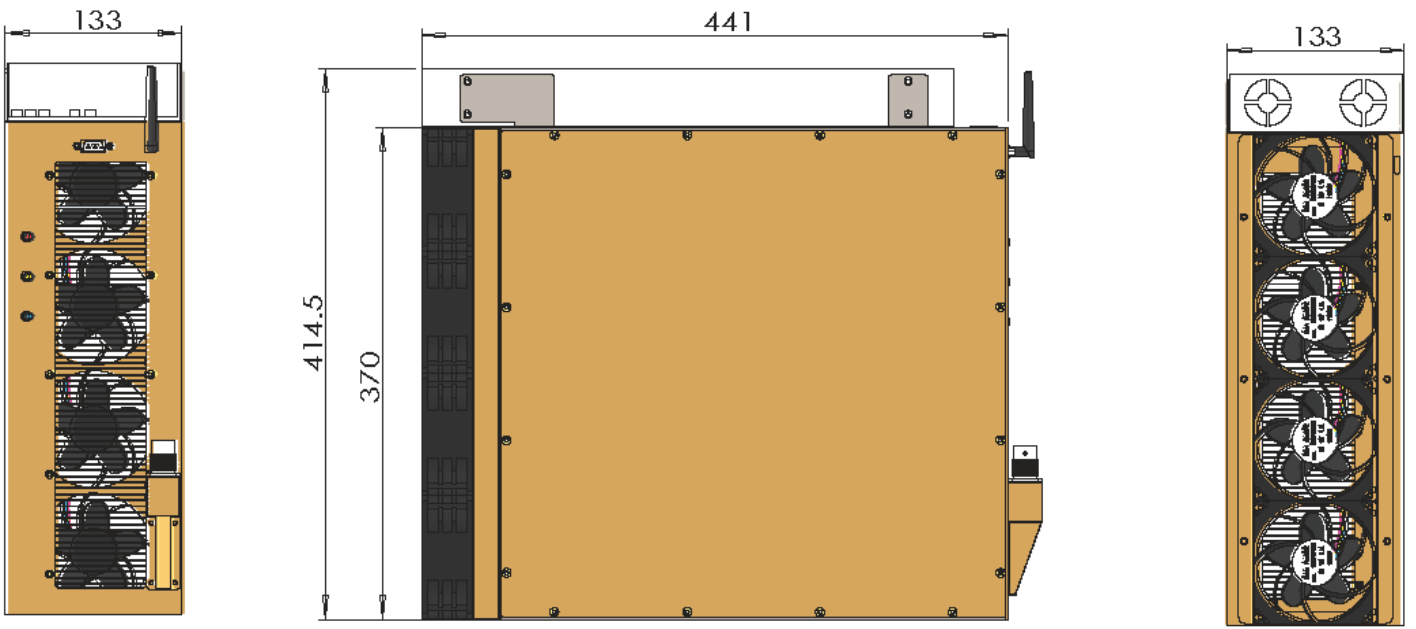

CYL-1200/A

Series

Technical Index

Performance		Unit	Min.	Typ.		Max.	Remarks
Central Wavelength		(nm)	1070	1080		1090
Spectral Bandwidth		(nm)		3		5	-3db
Output Optical Power		(W)		1000/1200
Short Time Power Stability		(%)	±1
Long Time Power Stability		(%)	±2
Laser Opening Time		(ms)	50~100
Laser Shutdown Time		(ms)	100~200
Power Regulation Range		(%)	10			100
Beam Quality		(M2)		1.2			QBH-20
			2.5			3.5	QBH-50
			6			12	QBH-100
Fiber Numerical Aperture（NA）half angle		（rad）				0.065	QBH-14/20/25
						0.22	QBH-50/100
Modulation Frequency		(KHz)	5			20	100% Output
Red Light Power		(mw)		40		60
Output Connector				QBH
Output Fiber Core Diameter		(μm)	20				Customizable
Output Fiber Length		(m)	5				Customizable
Output Cable Bending Radius		(mm)	200
Work Model			Continuous/Modulation				CW/Modulate
State Of Polarization			Random				Random
Communication Interface			Rs232/Ad /Super Terminal
Remote Communication			App				Customizable
Power Supply		(V)		220
Power Consumption	CYL-1000A	(KW)				2.2	220 V, Single-Phase Three-Wire
	CYL-1200A					3.5
Cooling Mode			Air Cooled				External
Working Ambient Temperature		(°C)	10			40
Working Environment Humidity		(%)	10			85
Storage Temperature		(°C)	-10			60
Structure			Rack
Weight/Dimensions		(Kg)	<25		(W)×(L)×(H) (mm)		370(414.5)x441x133
