NOVA P600

KEY FEATURES

QCW Laser Technology

Welding & Cutting in One System

Air-Cooled Maintenance-Free

Compact Desktop Structure

Pulse Energy up to 6 J

Peak Power 600 W

Built-in 5" Touchscreen

Handheld Operation

Foot Switch Control

Industrial Safety Design

APPLICATION

Jewelry Fabrication

Electronics Manufacturing

Battery Industry

Medical Devices

Advertising Letters

Hardware Processing

DIY & R & D Prototyping

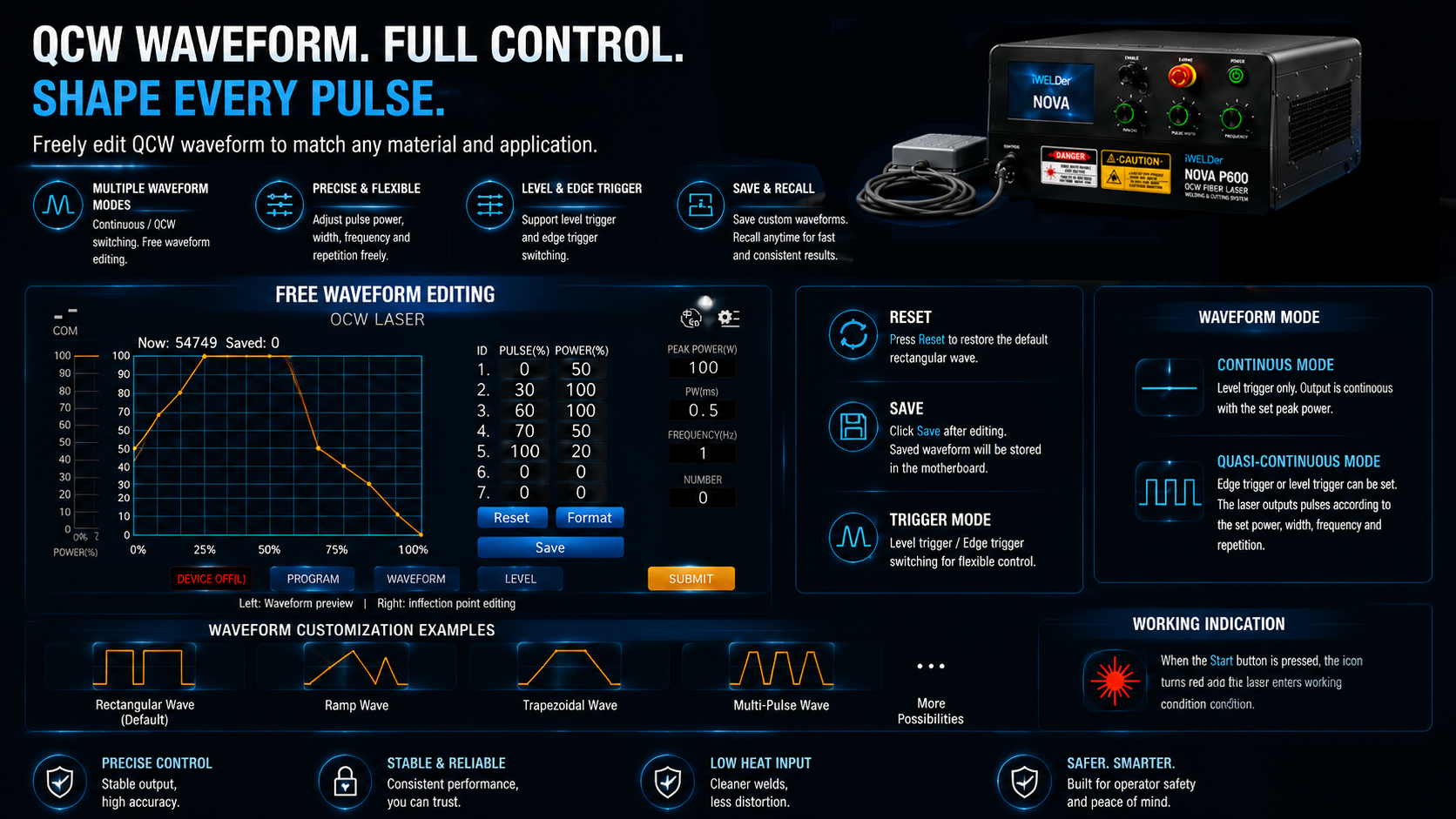

CUSTOM QCW WAVEFORM CONTROL

◉ Freely customize pulse power, width and frequency.

◉ Save and instantly recall custom waveform profiles.

◉ Build custom pulse waveforms for any welding application.

◉ Control heat distribution with point-by-point waveform editing.

◉Achieve higher weld consistency through precise pulse shaping.

Description

Features

Applications

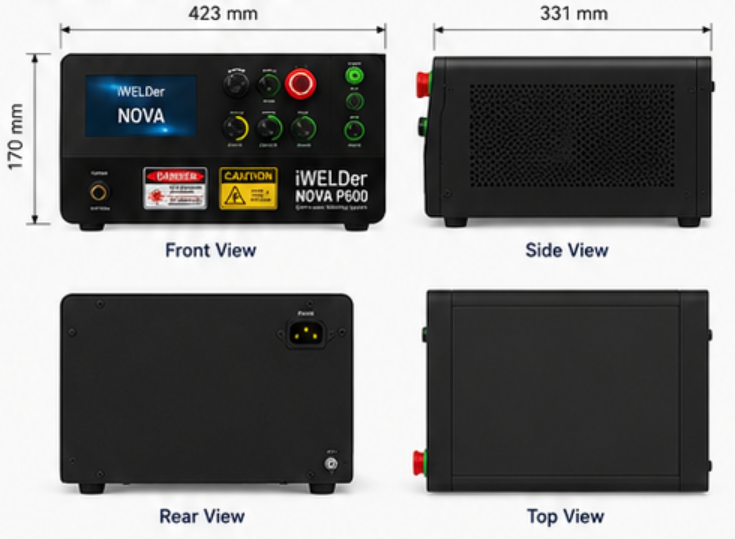

Size

Series

Technical Index

Item	NOVA P600
Average Laser Power	300 W
Peak Power	600 W
Maximum Single-Point Pulse Energy	6J
Laser Wavelength	1080±5nm
Pulse Frequency	1-300 Hz
Pulse Width	0.4-100 ms
Modulation Frequency	1-5000 Hz
Welding Thickness(SS)	0.1-1.5 mm
Control Mode	Jog/Foot Linkage
Output Fiber Length	3m(Standard)
Cooling Method	Air Cooling
Touch Screen	5 inch
Power Supply	AC 200-240V,50/60Hz
Max.Power Consumption	≤1.2 kW
Weight	20 kg

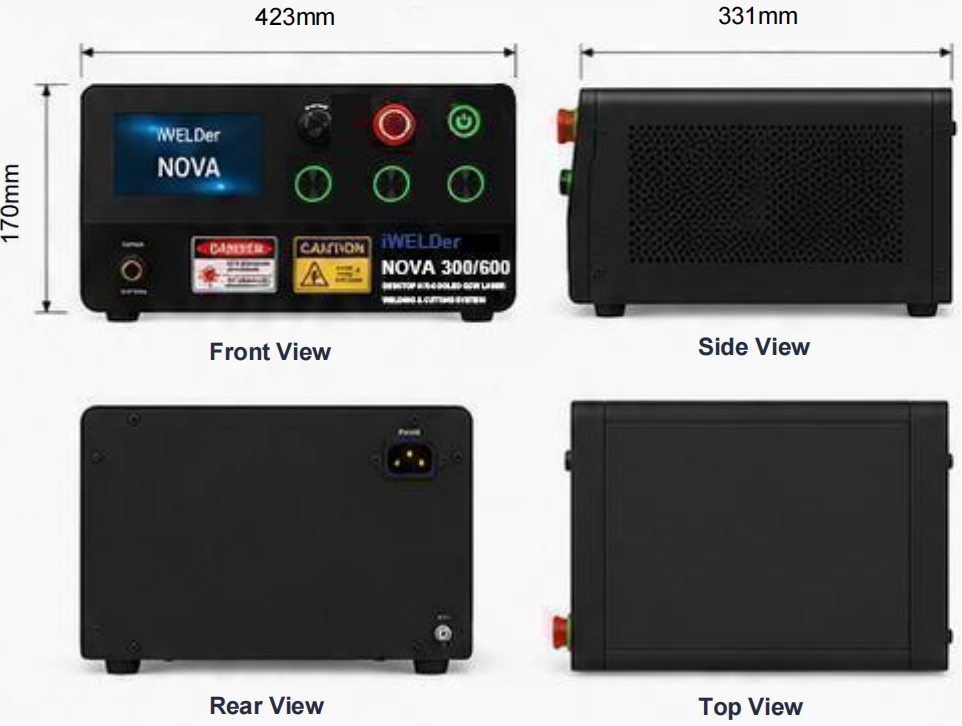

Dimensions(L×W×H)	423×331×170 mm
