CYL-12000

Description

CINA LASER CYL-12000 1.0μm multimode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.
CINA LASER, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.
CINA LASER’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ High wall plug efficiency, greatly reduce power consumption

◉ Strong capability on resisting high-reflective, suitable for different materials processing.

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance

Applications

◉ Laser cutting.

◉ Laser welding.

◉ Laser cladding.

◉ Laser brazing.

◉ Laser thermolizing.

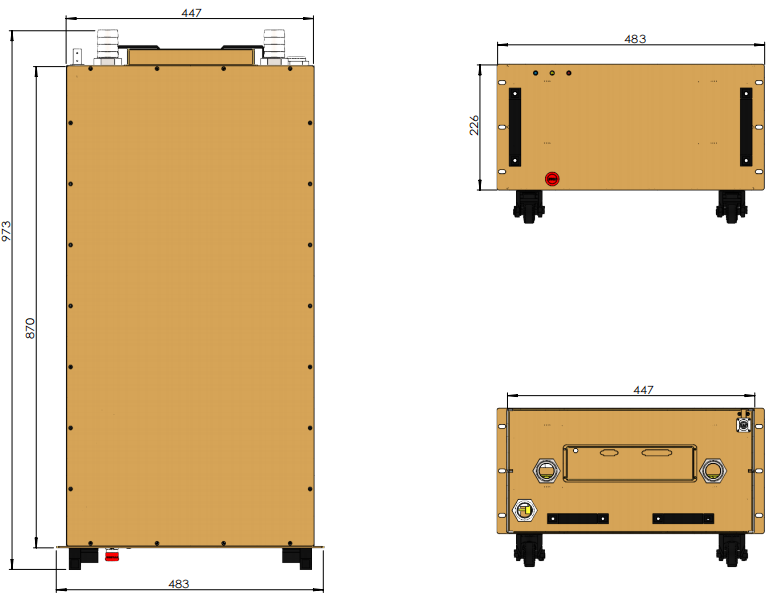

Size

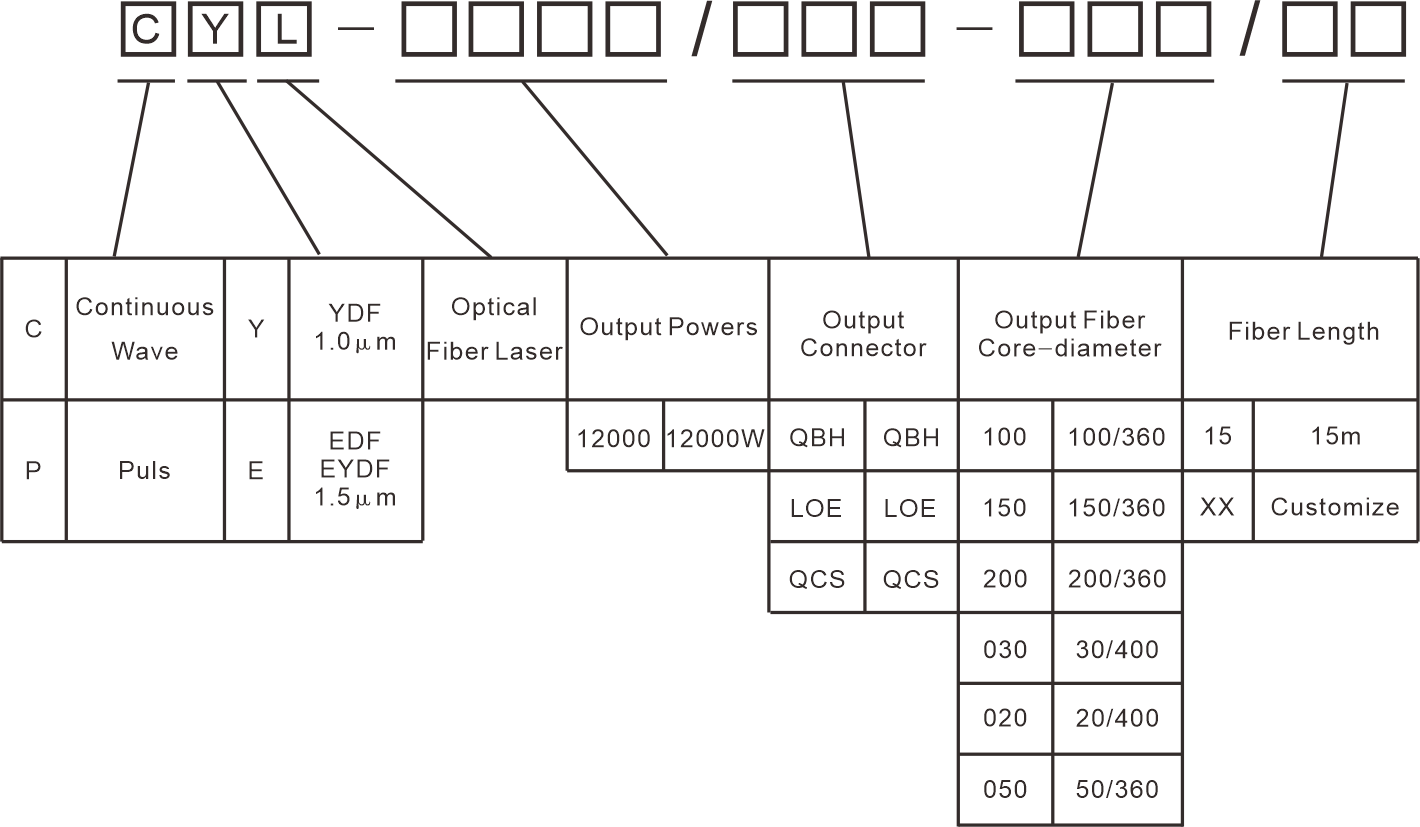

Series

Technical Index

Performance	Unit	Min.	Typ.	Max.	Remarks
Central Wavelength	(nm)	1070	1080	1090
Spectral Bandwidth	(nm)		5	8	3dB
Output Optical Power	(W)		12000
Power ADJ. Range	(%)	10		100
Output Power Stability	(%)		-1	1	100% continuous ＞1h
Output Power Stability	(%)		±2	±3	100% continuous ＞24h
Modulation Frequency.	(KHz)			5	100％output
Glow Power	(mW)	5		65
Output Connector			QBH		12000W
Beam Quality（BPP）	(mm*mrad)	3.5		4.5	Output fiber core-diameter100um
		5		6.5	Output fiber core-diameter150um
		6.5		9	Output fiber core-diameter200um
Output Fiber Length	(m)		15		Customize
Output Fiber Core-Diameter	(μm)	100（150／200）			Customize
Output Fiber Bending Radius	(mm)	200
Working Mode		Continuous modulation
Polarization State		Random			Random
Telecommunication Port		RS232 / AD / Super terminal
Remote Telecommunication		APP			Customize
Working Voltage	(V)	360	380	400	VAC
Input Power	(KW)			20	CYL-12000/M 100％ output
Cooling Method	(L/min)	Water-cooling			Circumscribed
Working Environment Temp.	(°C)	10	25	40
Working Environment Humidity	(%)	10		80
Storage Temp.	(°C)	-10	25	60
Cooling Medium		Distilled Water(Above 0 ℃)/Ethylene glycol antifreeze(Below 0℃) distilled water（Above 0 ℃）／Ethylene glycol antifreeze（Below 0 ℃） distilled water（Above 0 ℃）／Ethylene glycol antifreeze（Below 0 ℃）
Dimensions	(mm)	870 x 447 x 226			(L)x (W) x (H)
Weight	(kg)	<150Kg
Structure		Rack
